Camlock Coupling Type E
Back to Product ListStandard Camlock Coupling

Camlock Coupling Type E

ONE-CL-E

Usage & Applications
· For connecting the transfer of liquids, acids, bases, food products, and high/low temperature fluids
· Quick and easy connection to pipes, hoses, tubes, and tanks
· Fast attachment/detachment without tools using a one-touch cam design
· Suitable for sites with frequent piping changes such as pumps, tanks, and IBCs
#Water Transfer#Drainage#Chemical#Food & Beverage#Oil & Fuel
Features
· Part E: Hose Shank Adapter type
· Hose tail type for direct insertion into hoses
· Manufactured in aluminum, stainless steel 304/316L, brass, and ductile steel
· Fast connection/disconnection without tools via one-touch cam lever
· Prevents leakage with a flat gasket
· Complies with international standards MIL-C-27487 and EN 14420-7
#Aluminum#Stainless Steel 316#Brass#Polypropylene#Quick Connect#Leak-Proof#Mil-Spec / EN Standard
Inquire Online
041-354-0220
export@hongilhose.co.kr

Technical Specifications

Detailed size and specifications for each component.

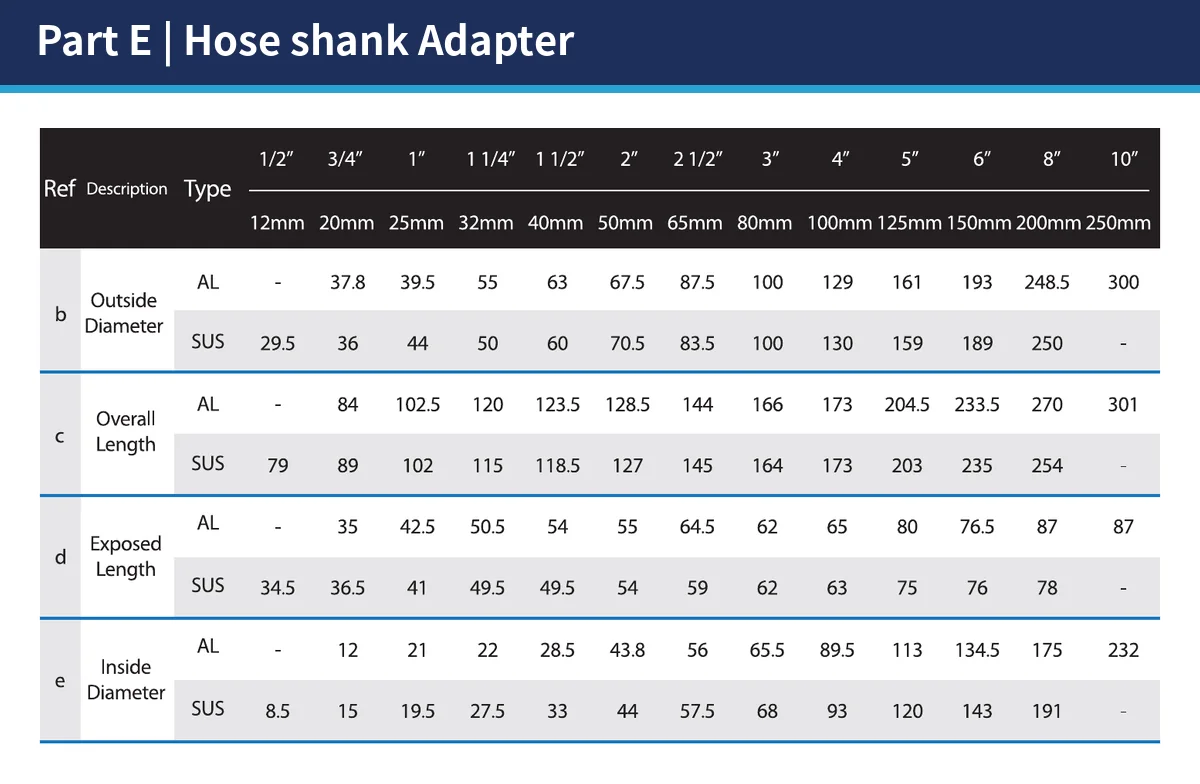

This is the specification table for Part E (Hose Shank Adapter). Dimensions are listed by material, aluminum (AL) and stainless steel (SUS), with sizes available from 1/2" (12mm) to 10" (250mm). Please contact us separately for exact specifications.

Spec 1

Click the image to enlarge.

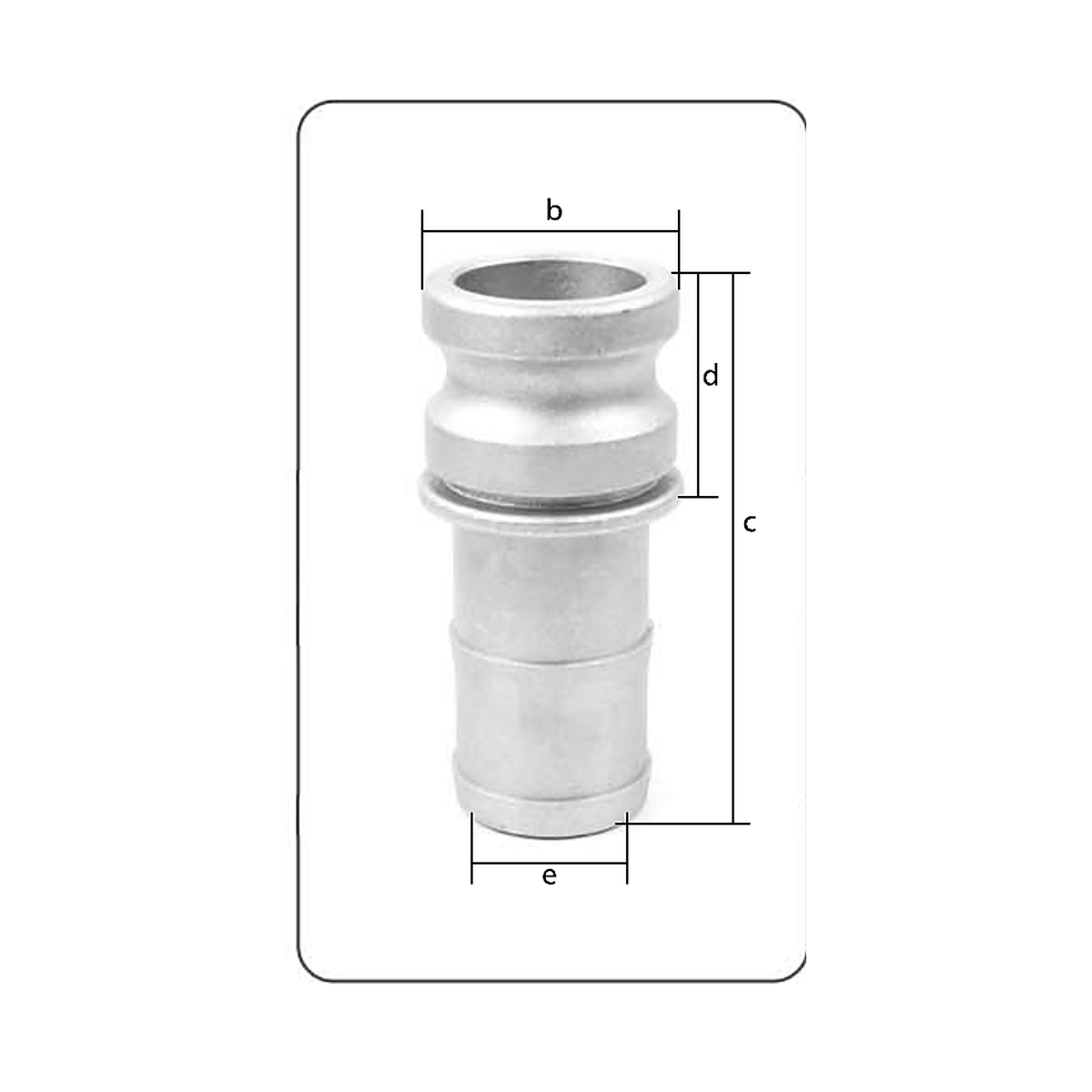

Spec 2

Click the image to enlarge.

※ Custom specification order production standard deviation: ±0.5mm
